Bunbury sits on a coastal plain underlain by Tamala Limestone and Quaternary calcareous sands, with groundwater typically 2 to 4 metres below surface. These conditions demand careful driven pile design because the carbonate sands can collapse during driving and the limestone caprock may cause refusal or pile damage. For marine structures near Koombana Bay or Leschenault Estuary, we also account for scour depth and lateral loads from wind and waves. The combination of weak near-surface sands and variable rockhead makes preliminary boreholes and cone penetration tests essential before selecting pile type and embedment depth. A thorough site investigation reduces the risk of underestimating shaft friction in these shelly soils.
In Bunbury's calcareous sands, shaft friction can drop by 50 % compared to silica sands of similar density.
Methodology and scope
Local considerations

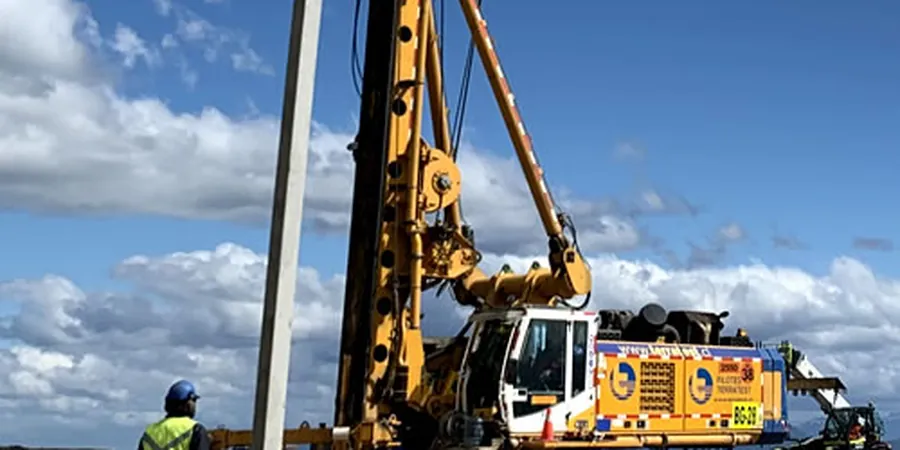

A significant risk in Bunbury is driving through the Tamala Limestone caprock, which can cause pile toe damage or deviation. We use a drop hammer with controlled energy and monitor blow counts per 0.3 m to detect the transition from sand to rock. If the pile refuses before reaching design depth, we may need to pre-drill or switch to a driven cast-in-situ system. Another concern is liquefaction in loose saturated sands during a seismic event; we evaluate this via the NCEER simplified procedure and recommend ground improvement if cyclic resistance ratios are marginal. The team also checks for lateral spreading near the Leschenault Estuary shoreline.
Applicable standards
AS 2159-2009 Piling – Design and installation, AS/NZS 1170.4-2007 Structural design actions – Earthquake, AS 1726-2017 Geotechnical site investigations
Associated technical services
Site investigation for piling
Boreholes to 25 m depth with SPT and undisturbed sampling, plus CPTu to map soil stratigraphy in real time.
Pile design and load testing
Static compression and tension tests to AS 2159, PDA dynamic testing, and CAPWAP analysis for production piles.
Liquefaction and seismic assessment
Evaluation of cyclic resistance using SPT-based methods and site-specific ground response analysis for driven pile foundations.
Typical parameters
Frequently asked questions
What is the typical cost for driven pile design in Bunbury?
The cost for design and geotechnical investigation ranges between AU$1,870 and AU$7,280, depending on the number of boreholes, load tests required, and complexity of the site geology. This includes reporting and final design parameters.
How does Tamala Limestone affect pile driving refusal?
Tamala Limestone is variable in hardness and can cause sudden refusal if the pile encounters a cemented layer. We mitigate this by pre-drilling through the caprock to a depth of 2 to 3 metres before driving, or by using a steel H-pile with reinforced toe.
What factor of safety is recommended for driven piles in calcareous sands?
For compression loading, we apply a factor of safety of 2.5 on ultimate shaft and base resistance. For tension loads in these sands, the factor increases to 3.0 due to the lower reliability of skin friction in carbonate soils.
