AS 4678:2002 sets the standard for earth-retaining structures and drainage in Australia, and in Bunbury this code is especially critical. The city sits on the Swan Coastal Plain with a shallow water table that often sits just 2 to 3 metres below ground. A poorly designed drainage system can turn a simple excavation into a mud pit within hours. That is why we integrate permeability testing and long-term groundwater monitoring into every geotechnical drainage design. Before we propose any solution, we run a [permeability test in the field](https://bunbury.sondajespt.com/permeabilidad-campo) to measure actual flow rates in the local sand and clay layers. This data drives the drain spacing, pipe sizing and filter selection we recommend.

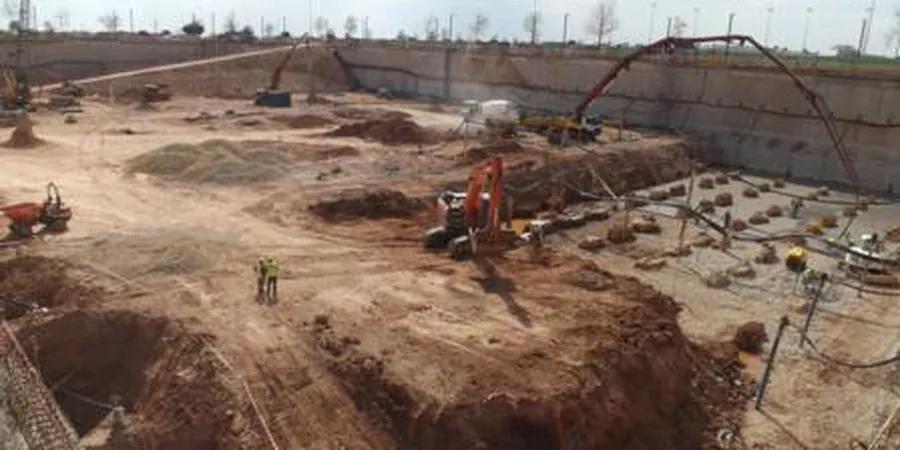

A water table at 2.5 metres depth in Bunbury can turn a simple excavation into a mud pit without engineered drainage.
Methodology and scope
- Hydraulic conductivity from falling-head tests
- Groundwater elevation from standpipes
- Soil classification per AS 1726
- Slope stability under seepage conditions
Local considerations
Bunbury receives about 800 millimetres of rain annually, concentrated between May and September. The combination of winter rainfall and a perched water table creates a real risk of basal heave in excavations and long-term uplift on buried structures. In our experience, the most common failure we see is a drainage blanket that was not designed for the actual soil gradation, leading to clogging within two wet seasons. A thorough geotechnical drainage design must include a filter compatibility analysis and an overdesign factor of at least 1.5 for the discharge capacity. Skipping these steps can cost owners tens of thousands in remedial work.
Applicable standards
AS 4678:2002 – Earth-retaining structures, AS 1726:2017 – Geotechnical site investigations, AS/NZS 1170.2:2021 – Wind and rain loading
Associated technical services
Shallow groundwater control
Design of perimeter drains, sump-and-pump systems and French drains for sites with water table within 2 metres of the surface. Includes flow-rate estimation and pump sizing.
Cut-off and interceptor drains
Engineered trenches with graded filter layers to intercept lateral groundwater flow before it reaches the excavation or foundation zone. Typically combined with a low-permeability backfill.
Long-term drainage monitoring plan
Installation of vibrating-wire piezometers and manual standpipes, plus scheduled data collection over one wet season to verify system performance and refine the geotechnical drainage design for the next phase.
Typical parameters
Frequently asked questions
Why is geotechnical drainage design important in Bunbury?
The water table is naturally high across most of the Bunbury area, often within 2 to 3 metres of the surface. Without a proper drainage design, excavations can collapse, slabs can heave and buried structures can experience buoyancy forces that exceed their dead load.
How much does a geotechnical drainage design cost in Bunbury?
For a typical commercial or residential project in Bunbury, the design and testing component ranges between AU$1,470 and AU$3,800. The final cost depends on the number of boreholes, permeability tests and the complexity of the drainage network required.
What soil types are most challenging for drainage in Bunbury?
Silty sands and clayey sands with low hydraulic conductivity are the most problematic. They can appear free-draining at the surface but actually have a K value below 1×10⁻⁵ m/s, leading to slow seepage and long-term saturation of the subgrade.
Do you include long-term monitoring in your drainage design service?
Yes. We recommend at least one wet-season monitoring cycle using standpipes or piezometers to confirm that the drainage system performs as designed. This is especially important for sites near the Leschenault Estuary where tidal influence can affect groundwater levels.
What standards do you follow for drainage design in Bunbury?
All designs comply with AS 4678:2002 for earth-retaining structures and AS/NZS 1170.2 for rainfall loading. We also reference AS 1289.6.7.1 for permeability testing and the FHWA guidelines for filter design when working on road or infrastructure projects.
