A three-story commercial development along Bunbury's Koombana Bay foreshore required a rigorous factor of safety calculation after initial boreholes revealed loose estuarine sands overlying clay at 8 m depth. The design engineer needed assurance that the proposed shallow foundations would not exceed bearing capacity under combined wind and seismic loads typical of this coastal zone in Western Australia. By running limit equilibrium analyses with soil parameters from triaxial tests, the team verified a minimum FS of 2.8 against bearing failure and 1.5 against sliding, satisfying AS 4678 requirements. For projects with similar soil profiles, cross-referencing with a [capacity of load test](https://bunbury.sondajespt.com/capacidad-de-carga) on a test pad provides direct validation of the analytical model.
In coastal Bunbury, the factor of safety is not a fixed number — it adapts to the variable density of estuarine sands and the presence of cemented limestone horizons.
Methodology and scope
- Minimum FS = 3.0 for permanent retaining walls (AS 4678)
- Minimum FS = 2.5 for gravity retaining walls under static loads
- FS = 1.5 for sliding and overturning checks
Local considerations
In Bunbury, we often see projects where the factor of safety is calculated using generic soil parameters from published tables without site-specific testing. This is especially dangerous in the coastal strip near the Bunbury Port, where loose fills and variable groundwater levels can reduce effective stresses by 30% or more. A single conservative FS might mask a local weak zone, leading to differential settlement or even a bearing failure. The risk multiplies when the foundation is near the old drainage channels that cross the city center — these layers may have very low undrained shear strength that a standard analysis could miss. Combining a thorough site investigation with a sensitivity analysis on the factor of safety is the only way to catch these hidden conditions.
Applicable standards
AS 4678:2002 (Earth-retaining structures), AS 1726:2017 (Geotechnical site investigations), AS/NZS 1170.0:2002 (Structural design actions – general principles)
Associated technical services
Bearing Capacity & FS Analysis
Limit equilibrium and finite element analysis for shallow and deep foundations, using soil parameters from triaxial and direct shear tests. Reports include sensitivity curves and recommended minimum FS per AS 4678.
Slope Stability Modeling

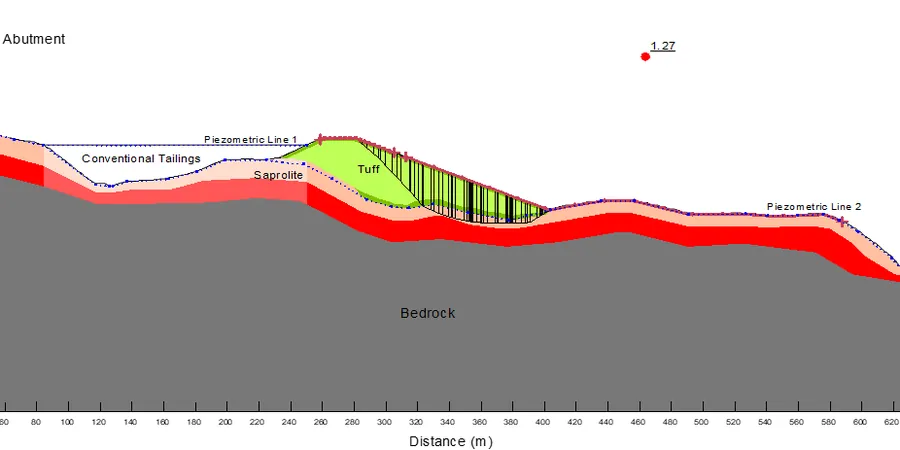

Bishop, Spencer, and Morgenstern-Price analyses for natural slopes, cut batters, and fill embankments. Output includes FS contours and critical slip surface identification for temporary and permanent works.
Retaining Wall FS Verification
Overturning, sliding, and bearing checks for gravity, cantilever, and anchored walls. Includes groundwater effects and seismic acceleration (AS 1170.4) to ensure the factor of safety meets code minimums.
Typical parameters
Frequently asked questions
What factor of safety is typically required for shallow foundations in Bunbury's sandy soils?
For spread footings on sand, AS 4678 recommends a minimum FS of 3.0 against bearing capacity failure under sustained loads. In Bunbury's loose estuarine sands or where groundwater is within 2 m of the base, the team often raises this to 3.5 to account for the lower effective stress and potential for local punching shear.
How does the factor of safety change when groundwater is present near the Leschenault Estuary?
Groundwater reduces effective stress and can lower bearing capacity by 30–50% compared to dry conditions. The factor of safety must be recalculated using submerged unit weights and buoyant soil parameters. For sites within 500 m of the estuary, the team runs analyses under both static and transient (tidal) water levels to ensure the FS remains above 1.5 during high tide events.
How much does a professional factor of safety calculation cost in Bunbury?
The cost for a complete factor of safety analysis with site-specific soil testing and a geotechnical report ranges between AU$880 and AU$2,890 for a typical residential or small commercial project. This includes lab testing (triaxial or direct shear), limit equilibrium modeling, and a certified report compliant with AS 4678. Larger developments with multiple foundation types or deep excavations may fall at the upper end of this range.
