Bunbury grew rapidly from the 1970s as a port and industrial hub, with much of its development sitting on Quaternary alluvial and estuarine deposits. These loose sands, often saturated near the Leschenault Estuary, are prone to pore-pressure buildup during seismic shaking. Our soil liquefaction analysis in Bunbury applies the NCEER methodology (Youd-Idriss 2001) to evaluate cyclic resistance ratio from SPT blow counts. Before building near Koombana Bay or the industrial zones, we combine this assessment with cimentaciones sismicas to design foundations that tolerate lateral spreading, and with drenes verticales when preloading is needed to densify loose strata.
Loose saturated sands beneath Bunbury can lose 80% of shear strength within seconds of shaking — a risk that SPT-based liquefaction analysis quantifies before you pour concrete.
Methodology and scope
- SPT boring with continuous sampling per AS 1289.6.3.1 to obtain N₁₆₀ corrected values.
- Fines content adjustment and cyclic stress ratio (CSR) calculation for magnitude Mw 6.5.
- Site class determination (AS 1726:2017) — Bunbury often classifies as Class D or E in estuarine areas.
Local considerations

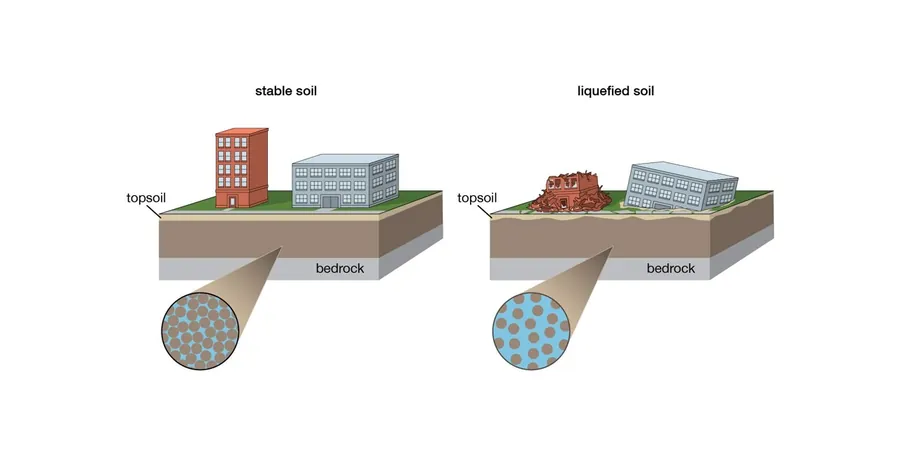

The contrast between Bunbury's dry summer and wet winter (avg. 800 mm annual rainfall) raises groundwater seasonally, saturating the sandy mantle that caps much of the city. During a seismic event, these saturated sands can undergo liquefaction, causing bearing failure, sand boils, and lateral spreading toward the estuary. We've seen differential settlement damage in light industrial sheds near the port and tilt in residential slabs on the Carey Park side. Our soil liquefaction analysis in Bunbury prioritizes the deeper Holocene sands, which are looser and more vulnerable than the underlying Cretaceous bedrock.
Applicable standards
AS 1726:2017 Geotechnical site investigations, AS/NZS 1170.4:2007 Structural design actions – Earthquake actions, NCEER 1997 – Youd & Idriss SPT-based liquefaction evaluation, AS 1289.6.3.1 Standard test method for SPT
Associated technical services
SPT-Based Liquefaction Assessment
Borehole drilling with SPT at 1.5 m intervals, fines correction, CSR/CRR calculation, and factor-of-safety evaluation per NCEER. Includes site class classification and a liquefaction hazard map for your lot.
Advanced Cyclic Laboratory Testing
Undisturbed sampling of cohesionless sands using thin-wall tubes, followed by cyclic triaxial (AS 1289) or simple shear tests to measure CRR directly. Ideal for high-importance structures like hospital wings or multistorey apartments.
Typical parameters
Frequently asked questions
What is the difference between CRR and CSR in liquefaction analysis?
CRR (Cyclic Resistance Ratio) is the soil's capacity to resist pore-pressure buildup — it depends on density, fines content, and aging. CSR (Cyclic Stress Ratio) is the demand imposed by the earthquake, calculated from peak ground acceleration and depth. Liquefaction occurs when CSR exceeds CRR, giving a factor of safety below 1.0. Our reports present both values for each soil layer, so you see exactly where the margin lies.
How much does a soil liquefaction analysis cost in Bunbury?
For a standard residential or low-rise commercial site in Bunbury, the cost ranges between AU$3,750 and AU$5,620, including SPT borings to 15–20 m depth, laboratory fines analysis, and a detailed report with CRR/CSR tables. Larger projects with multiple boreholes or advanced cyclic triaxial testing fall at the higher end of that range. Contact us for a fixed quote based on your site plan.
Which Bunbury suburbs have the highest liquefaction risk?
Suburbs on estuarine or alluvial flats — notably Australind, Glen Iris, and parts of Pelican Point — show moderate to high susceptibility due to shallow groundwater (1.5–2.5 m) and loose fine sands. Areas underlain by the Tamala Limestone or Cretaceous bedrock, such as the city centre ridge and Withers, generally have low risk. Our analysis uses local borehole logs to confirm site-specific conditions.
Can liquefaction analysis help with existing buildings in Bunbury?
Yes. For existing structures, we perform a simplified screening using available borehole data and the NCEER methodology to estimate the factor of safety under a design earthquake. If the margin is low, we recommend retrofitting options such as ground improvement (e.g., deep soil mixing or vibrocompaction) or foundation underpinning. The analysis also supports insurance risk assessments and property due diligence.
